Scaling a plan in Planswift

There are two ways to scale a plan in Planswift:

• scaling automatically using a preset scale
• scaling manually using measurements from your plan

Tip: After scaling a plan, it's important to check that the sizes on the plan are accurate. Refer to the Planswift tutorial video (forward to timecode 3:53) to see how to check sizes with the Dimension tool or read this article for a quick overview.

Scaling automatically

Open the plan you are working on then;

1. check that you are on the Home tab
2. click on the down arrow on the Scale icon
3. scroll down to view and select metric scale ratios

Image 1: Scaling a plan automatically.

Scaling manually

Open the plan you are working on then;

1. check that you are on the Home tab
2. click on the Scale icon
3. you'll need to enter a height and width from your plan. Refer to the Planswift tutorial video (forward to timecode 3:06) for a step-by-step process.
4. click Ok to proceed

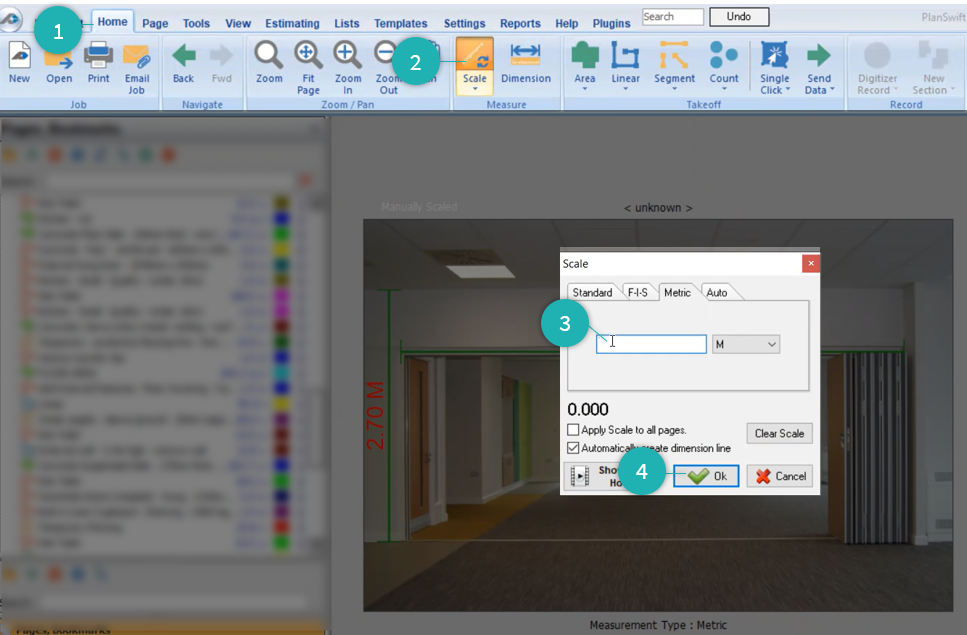

Image 2: Scaling a plan manually.
